From Concept to Prototype

Model Gallery

Our journey began with a simple question: Can we make underwater safety affordable for everyone?
From sketches to working prototypes, each stage brought us closer to realizing that vision.

Every Prototype Dives Deeper into Possibility

Each iteration represents countless hours of design, engineering, and testing. See how DiveGuard evolved from initial concepts to a fully functional underwater communication and safety system.

Concept
Initial Sketches

Initial Sketches

Early conceptual drawings exploring wrist-worn form factors and surface buoy relay systems. These sketches laid the foundation for our modular approach.

CAD Design
3D CAD Models

3D CAD Models

Detailed mechanical designs showing internal component layout, sensor integration, and waterproof sealing mechanisms. Precision engineering for harsh environments.

Prototype v1
First Prototype

First Prototype

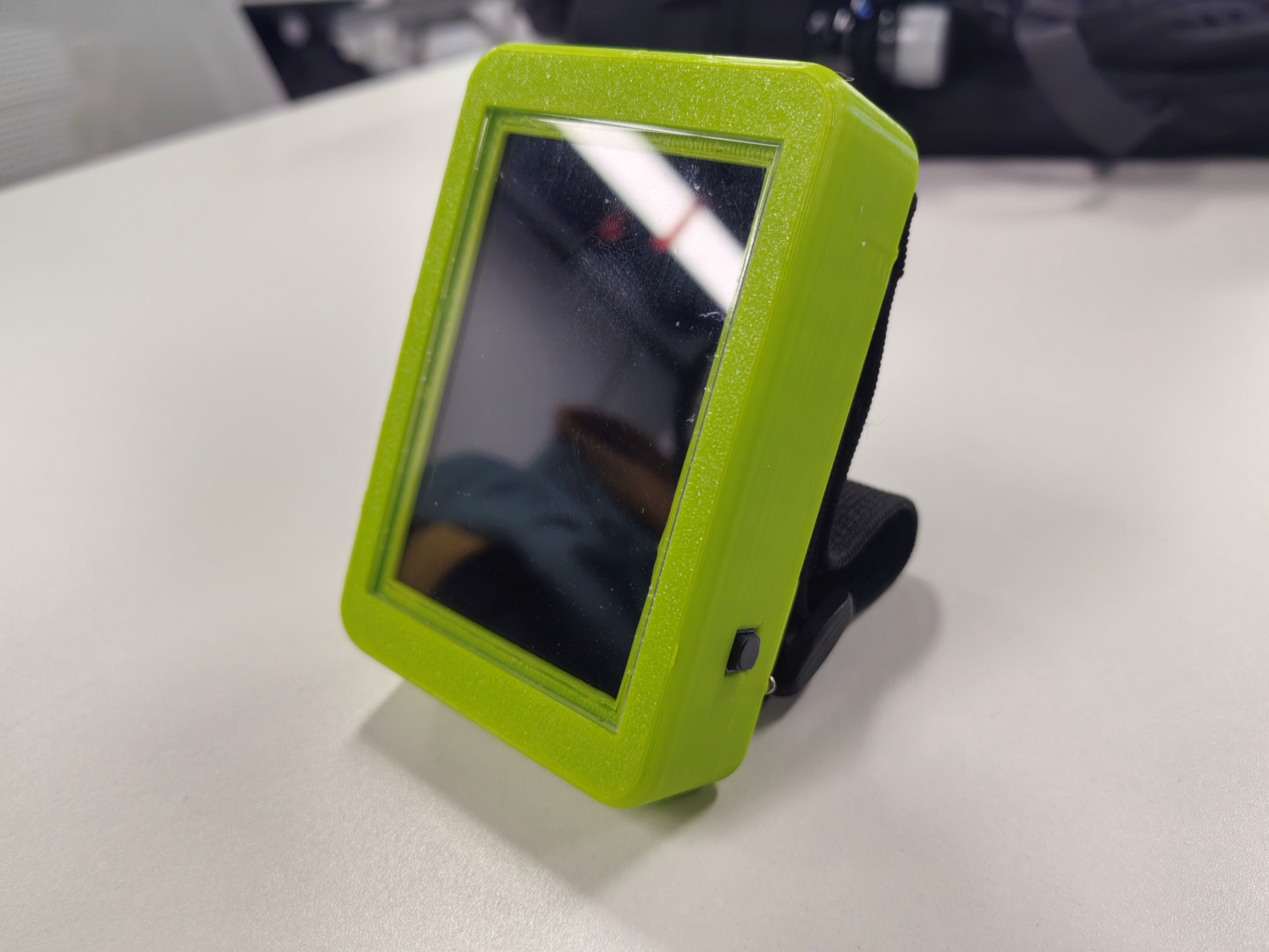

Initial working prototype with basic acoustic transmission and sensor integration. Validated core concept and identified key areas for improvement.

Testing
Pool Testing

Pool Testing

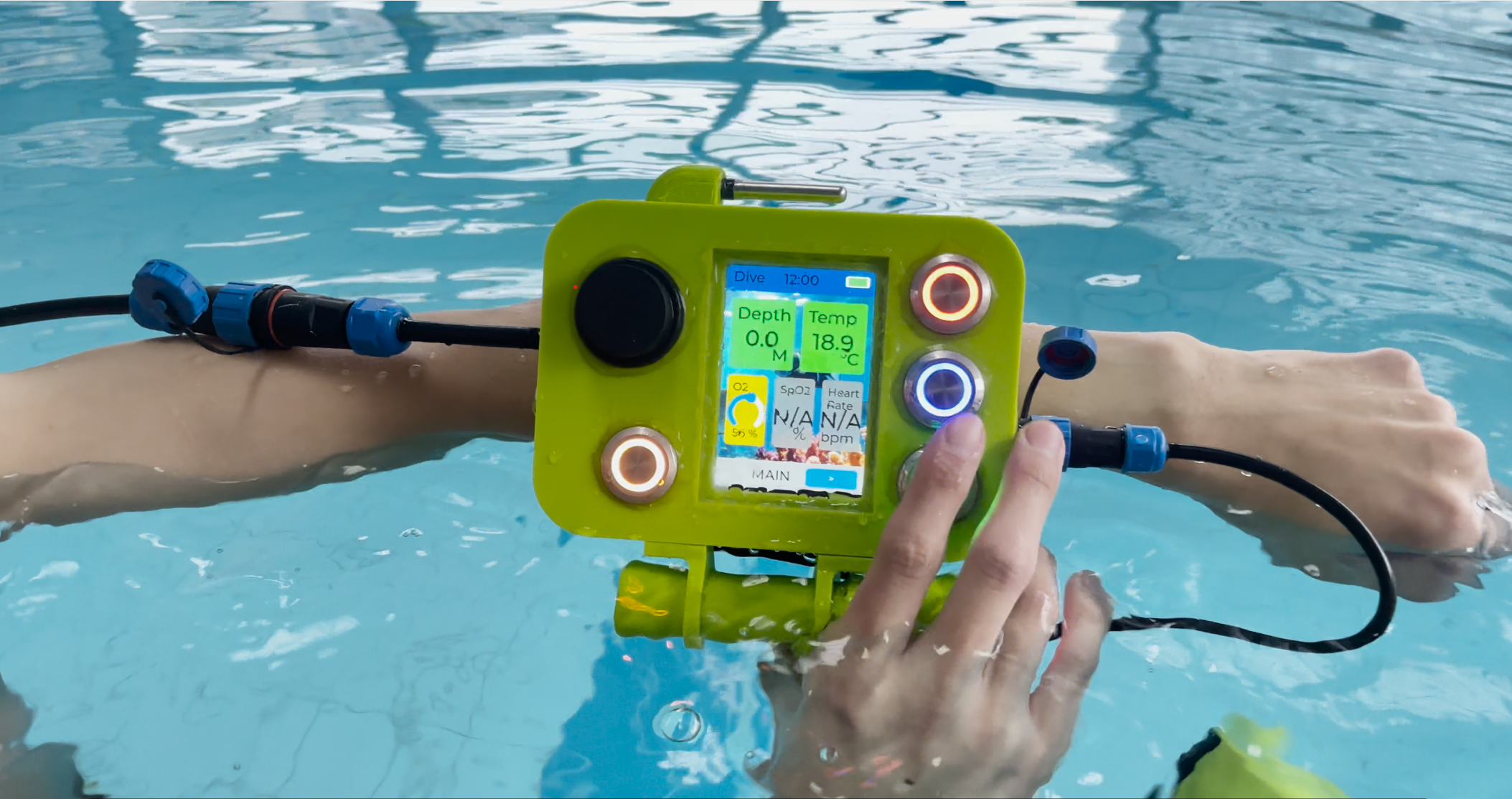

Controlled environment testing to validate waterproofing, communication range, and sensor accuracy. Multiple iterations refined the design.

Prototype v2
Refined Wrist Module

Refined Wrist Module

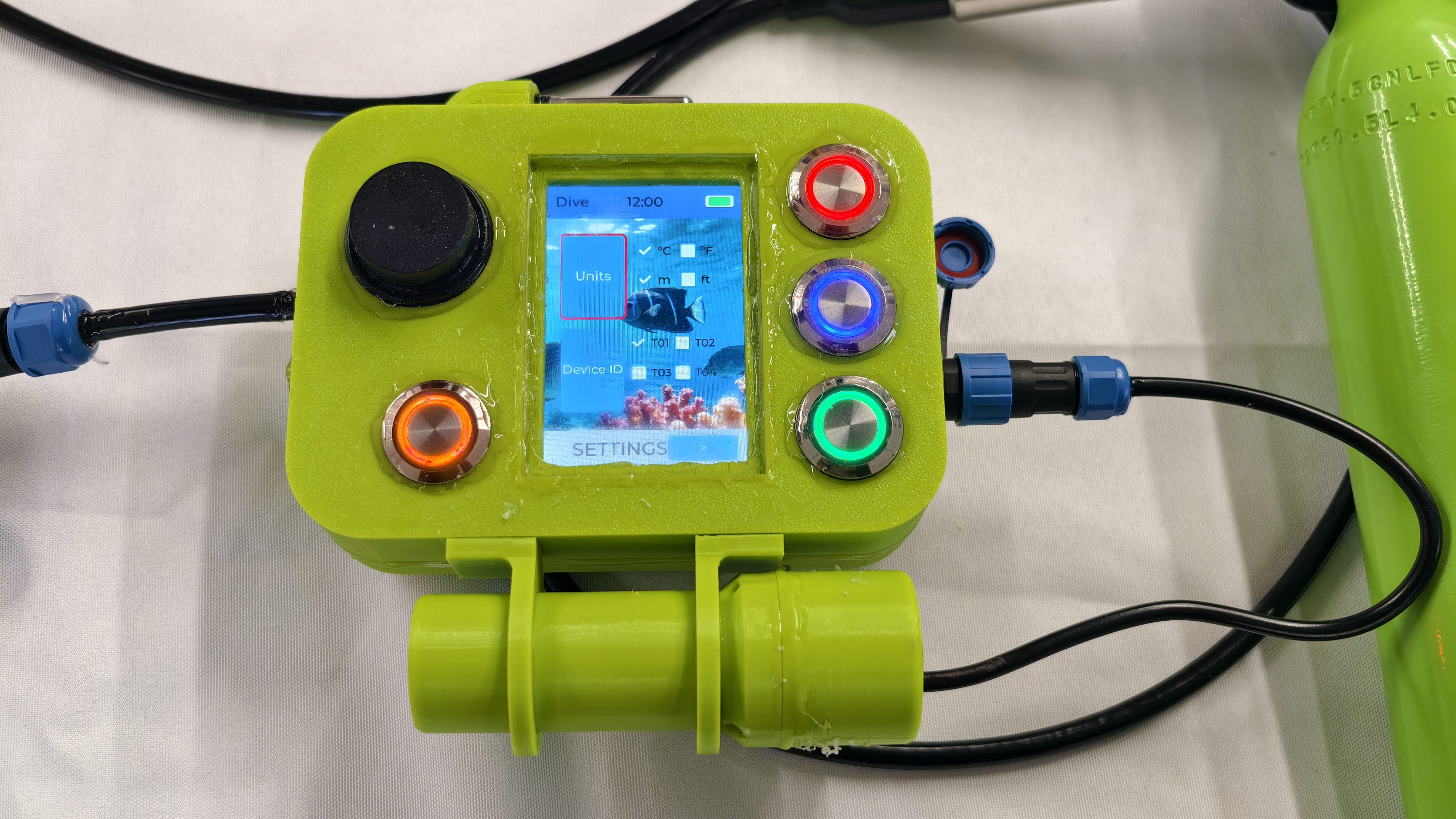

Enhanced wearable design with improved ergonomics, longer battery life, and optimized sensor placement. IP68 waterproof rating verified.

Component
Surface Buoy

Surface Buoy

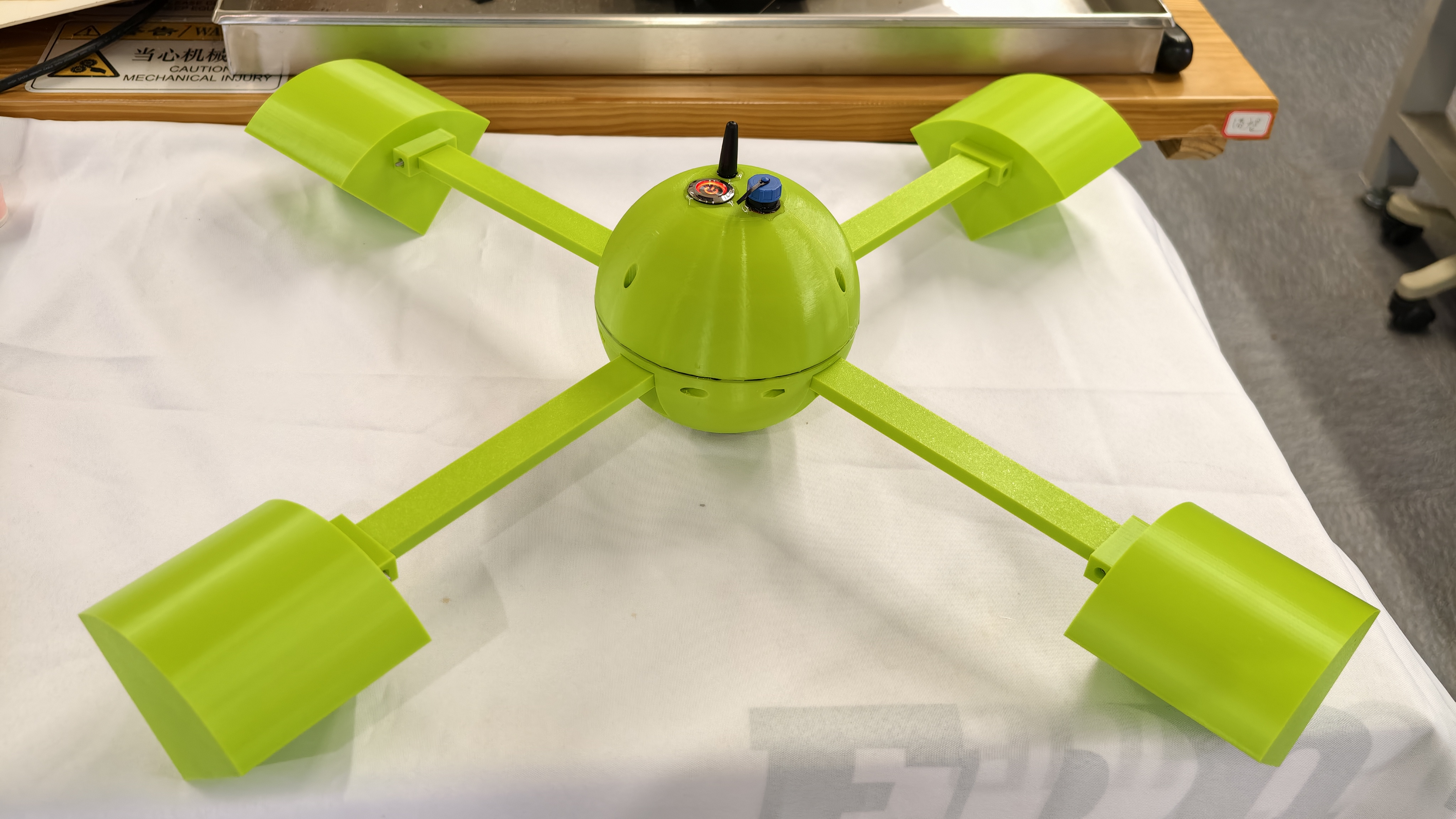

Floating relay station with GPS tracking and cellular connectivity. Bridges underwater acoustic signals to surface monitoring systems.

Integration
System Assembly

System Assembly

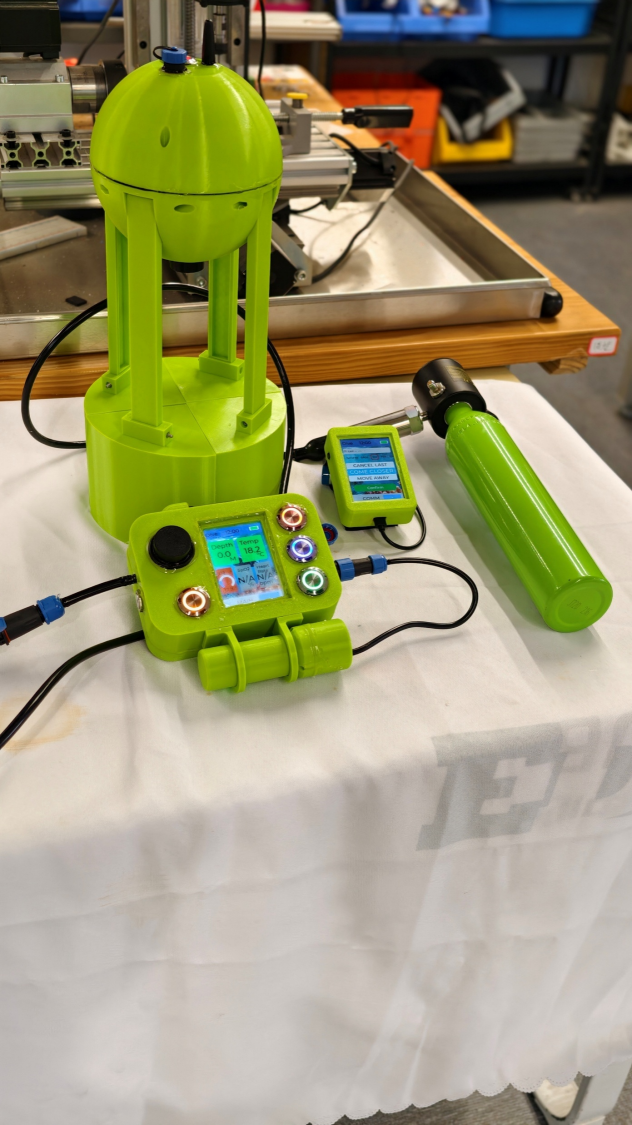

Complete system integration showing wrist module, buoy, and base station working together. Full network mesh topology demonstrated.

Development Journey

Evolution Timeline

Prototype 1 → Prototype 2 → Pre-Production Model

2025 Q1

Concept Phase

Initial research and conceptual designs. Team formation and problem definition. Feasibility studies for acoustic communication underwater.

2025 Q2

Prototype 1

First functional prototype completed. Basic acoustic transmission working. Initial sensor integration. Proof of concept validated.

2025 Q2

Testing & Iteration

Extensive pool testing. Identified waterproofing challenges. Refined sensor accuracy. Improved battery efficiency by 40%.

2025 Q3

Prototype 2

Enhanced design with improved ergonomics. IP68 waterproof rating achieved. Successful field tests in ocean conditions. Multi-device networking functional.

2026

Pre-Production

Produce 1000 units of equipment with the same specifications, entering market

2027

Market Launch

combine with new technologies like ai.
